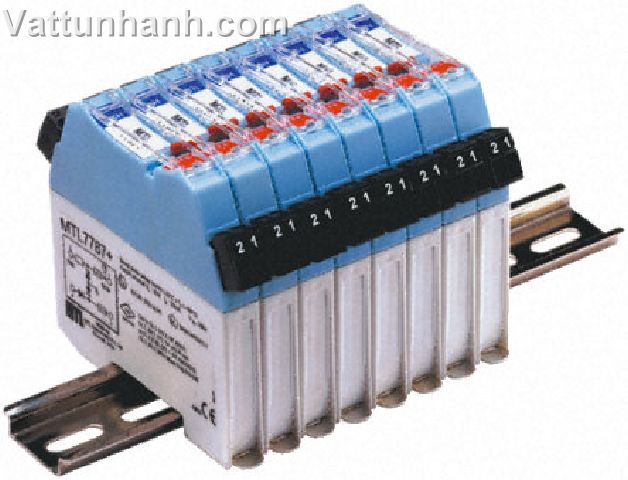

Isolator,barrier,1 channel,+28V,300R,MTL7728+
Mã sản phẩm: MTL7728+
Danh mục:Bộ bảo vệ Galvanic-Zener
Hãng sản xuất:
Maximum Operating Temperature=+65°C|Number of Channels=1|Safety Current Maximum=93mA|Safety Current Resistance=300Ω|Safety Voltage Maximum=26 V dc|Signal Type=Analogue|Supply Voltage=28 V dc
Hết hàng
Giá: Liên hệ
7700 Series Safety Barrier
Standard DIN rail mount
Removable, colour-coded terminals
Bussed power feed to other modules
Relay and solid state switch modules
Dual channel variants - 6.3mm per channel
Proximity detector inputs
Direct replacement for MTL700 Series
Compatible terminal numbering and safety descriptions
Dimensions: 105 x 90 x 12.6mm
| Manufacturer part no. | Polarities available | Max. end to end resistance (Ohms) | V working at 10μA | V max | Fuse rating (mA) | Stock no. |
| MTL7706+ | + | - | - | 35 | 50 | 612-5290 |
| MTL7728+ | + | 333 | 25.9 | 26.5 | 50 | 612-5313 |
| MTL7741 | n/a | n/a | n/a | 30 | 50 | 612-5307 |
| MTL7756ac | AC | 19.0 | (0.7) | 2.7 | 250 | 612-5329 |
| MTL7760ac | AC | 75 | 6.0 | 6.7 | 50 | 612-5341 |
| MTL7787+ | + | 333 | 26.6 | 27.2 | 50 | 612-5335 |
Note
Power bus facility applicable to MTL7706+, 7741 and 7787+ barriers
