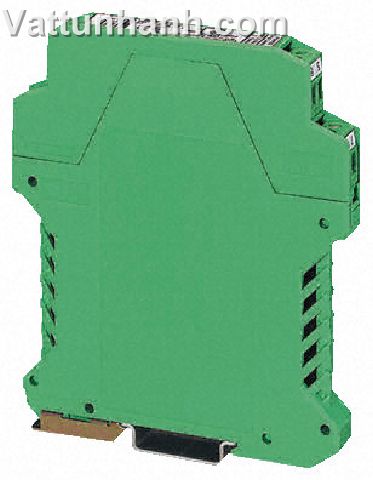

Converter,signal conditioning,configurable,isolator,4-20mA output,loop powered
Mã sản phẩm: 2814058
Danh mục:Bộ bảo vệ Galvanic-Zener
Hãng sản xuất:
Maximum Operating Temperature=+65°C|Minimum Operating Temperature=-25°C|Number of Channels=1|Safety Current Maximum=50mA|Safety Current Resistance=50Ω|Safety Voltage Maximum=30 V dc|Signal Type=Analogue Output|Supply Voltage=30 V dc
Hết hàng
Giá: Liên hệ
Configurable Loop Powered Isolator, MCR-CLP-UI-I-4
The module ensures safe galvanic isolation and signal level matching in an analogue signal circuit. On the input side DIP switches allow more than 25 different signal ranges to be selected. On the output side the isolator is operated in a 4 - 20mA current loop which simultaneously provides power to the module. 2 potentiometers are accessible from the front of the module to allow adjustment of the zero point and span.
| Input | |
| Input Signals: | 0 - 60mV, 0 - 100mV, 0 - 300mV, 0 - 500mV, 1 - 5V, 0 - 1V, 0 - 2V, 0 - 5V, 0 -10V, 0 -20V |
| ±100mV, ±200mV, ±500mV, ±1V, ±2V, ±5V, ±10V, ±20V | |
| 0 - 5mA, 0 - 10mA, 0 - 20mA, 4 - 20mA | |
| ±20mA | |
| Input Impedence | Voltage drop approx. 250mV at 20mA on I-input, approx. 1MΩ at U-input |
| Output | |
| Output Signals: | 4 - 20mA |
| Output Load: | Voltage drop 8V |
| General Data | |
| Transmission Error: | 0.1% of final value |
| Temperature Coefficient: | 0.005%/K |
| Power Supply Voltage: | 1.5kV, 50Hz, 1 minute |
| Ambient Temperature: | -25 to +65°C |
| Dimensions (WxHxD): | 17.5mm x 99mm x 114.5mm |
