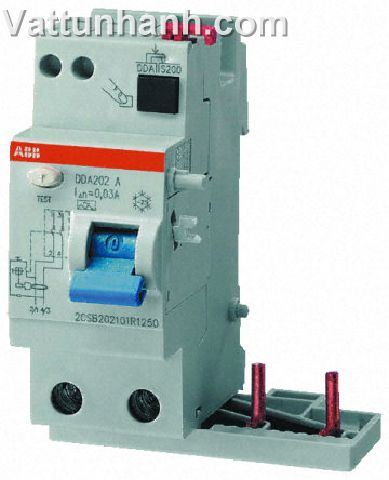

Circuit,breaker,RCD-Block,2P,A,25A,0,3A
Mã sản phẩm: 2CSB202101R3250
Danh mục:Bộ bảo vệ dòng rò
Hãng sản xuất:
Current Rating=25 A|Mounting Style=DIN rail|Number of Poles=2-pin|Rated AC Voltage=415 V|Trip Sensitivity=300mA
Hết hàng
Giá: Liên hệ
RCCB blocks, Series DDA 200 A
With integrated mounting rail for right-aligned mounting of 2, 3 and 4-pin automatic cut-outs in S200 series
Neutral conductor connector can be mounted to right or left
Applications: escalators, lifts, electrically-operated gates and barriers, machine tools, car washes, assembly lines and conveyor belts
| Pins: | 2/3/4-pin |
| Rated voltage: | 230/400V AC to 240/415V AC |
| Frequency: | 50/60Hz |
| Device lifespan: | ≥ 10000 switching cycles |
| Ambient temperature: | -25°C to +55°C |
| Cross-reference to manufacturers part number | |||
| Stock no. | Manuf. Part no. | Stock no. | Manuf. Part no. |
610-3773 | 2CSB 202 101 R1250 | 610-3408 | 2CSB 203 101 R3630 |
610-3789 | 2CSB 202 101 R1400 | 610-3414 | 2CSB 203 101 R4250 |
610-3795 | 2CSB 202 101 R1630 | 610-3420 | 2CSB 203 101 R4400 |
610-3802 | 2CSB 202 101 R3250 | 610-3436 | 2CSB 203 101 R4630 |
610-3818 | 2CSB 202 101 R3400 | 610-3442 | 2CSB 204 101 R1250 |
610-3824 | 2CSB 202 101 R3630 | 610-3458 | 2CSB 204 101 R1400 |
610-3830 | 2CSB 202 101 R4250 | 610-3464 | 2CSB 204 101 R1630 |
610-3846 | 2CSB 202 101 R4400 | 610-3470 | 2CSB 204 101 R3250 |
610-3852 | 2CSB 202 101 R4630 | 610-3486 | 2CSB 204 101 R3400 |
610-3868 | 2CSB 203 101 R1250 | 610-3492 | 2CSB 204 101 R3630 |
610-3874 | 2CSB 203 101 R1400 | 610-3509 | 2CSB 204 101 R4250 |
610-3880 | 2CSB 203 101 R1630 | 610-3515 | 2CSB 204 101 R4400 |
610-3385 | 2CSB 203 101 R3250 | 610-3521 | 2CSB 204 101 R4630 |
610-3391 | 2CSB 203 101 R3400 | ||
| 2-pin | ||
| Type | Manuf. Part no. | Stock no. |
| 30 mA | ||
| 25A | 2CSB 202 101 R1250 | 610-3773 |
| 40 A | 2CSB 202 101 R1400 | 610-3789 |
| 63 A | 2CSB 202 101 R1630 | 610-3795 |
| 300 mA | ||
| 25A | 2CSB 202 101 R3250 | 610-3802 |
| 40 A | 2CSB 202 101 R3400 | 610-3818 |
| 63 A | 2CSB 202 101 R3630 | 610-3824 |
| 500 mA | ||
| 25A | 2CSB 202 101 R4250 | 610-3830 |
| 40 A | 2CSB 202 101 R4400 | 610-3846 |
| 63 A | 2CSB 202 101 R4630 | 610-3852 |
| 3-pin | ||
| Type | Manuf. Part no. | Stock no. |
| 30 mA | ||
| 25A | 2CSB 203 101 R1250 | 610-3868 |
| 40 A | 2CSB 203 101 R1400 | 610-3874 |
| 63 A | 2CSB 203 101 R1630 | 610-3880 |
| 300 mA | ||
| 25A | 2CSB 203 101 R3250 | 610-3385 |
| 40 A | 2CSB 203 101 R3400 | 610-3391 |
| 63 A | 2CSB 203 101 R3630 | 610-3408 |
| 500 mA | ||
| 25A | 2CSB 203 101 R4250 | 610-3414 |
| 40 A | 2CSB 203 101 R4400 | 610-3420 |
| 63 A | 2CSB 203 101 R4630 | 610-3436 |
Standards
IEC/EN 61009
