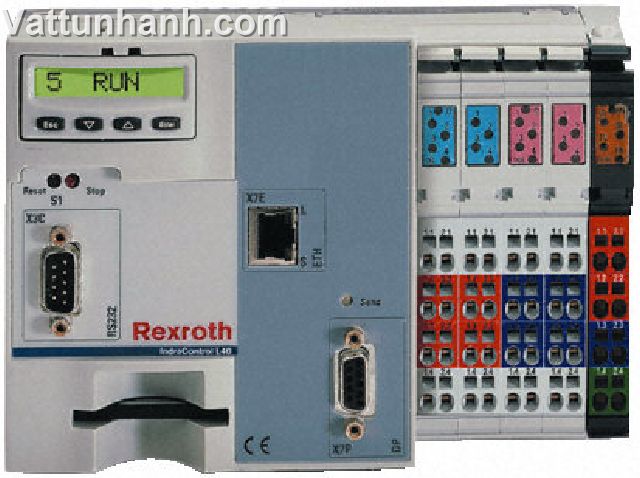

PLC,CPU,L40,profibus master or slave,8 outputs,8 inputs,24Vdc,CML40.2-NP-330-NA-NNNN-NW
Mã sản phẩm: CML40.2-NP-330-NA-NNNN-NW
Danh mục:Bộ điều khiển PLC - CPU
Hãng sản xuất:
Communication Port Type=RS232|Depth=76mm|For Use With=L40 Series|Input Type=Digital|Length=120mm|Manufacturer Series=IndraLogic L40|Maximum Inputs/Outputs=512|Maximum Operating Temperature=+55°C|Minimum Operating Temperature=+5°C|Mounting Type=DIN Rail|Network Type=Ethernet, Profibus|Number of Communication Ports=1|Number of I/O=16|Number of Inputs=8 (Digital)|Number of Outputs=8 (Digital)|Programming Interface=Computer|Programming Language Used=CFC, FBD, Instruction List, Ladder Logic, SFC, ST|
Hết hàng
Giá: Liên hệ
Bosch Rexroth CPU - L40 Performance PLC
Processing time: typically 70μs (1000 instructions in IL, bit and word commands)
User memory: (code/data) 8MB (4/4MB)
Retentive memory: 64kB
Number of tasks 16
I/O: 512//512 I/Os (centralised), extension via PROFIBUS DP (max. 126 users with 8kB I/O each), 8 in/8 out on board
Programming interface: Ethernet, RS232
Supplied libraries: PLCopen, IEC 61131-3 standard, communication
Communication interfaces: RS232, Ethernet TCP/IP, EtherNet/IP Adapter (Slave), PROFIBUS DP
DIN rail mounting
