PLC, S7-200, comms, internet, GSM/GPRS, modem, Sinaut MDT720-3, antenna
Mã sản phẩm: 6NH98601AA00
Danh mục:Phụ kiện PLC
Hãng sản xuất:
Accessory Type=Antenna|For Use With=SIMATIC S7-200 Series
Hết hàng
Giá: Liên hệ
SIMATIC S7-200 controllers_6160684_Standard Module

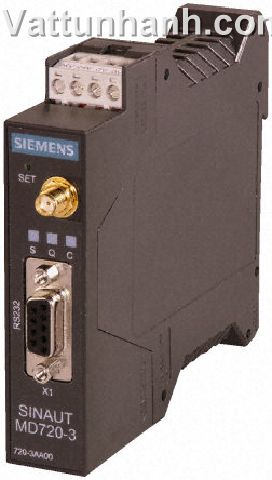

SINAUT MD720-3 - GSM/GPRS modem for S7-200
Modem
GPRS modem for connecting to the S7-200Used as GSM modem for Teleservice
For setting up error message and monitoring systems
Easy to set up without specific radio knowledge
Programming via S7-200 programming modules
Antenna
Round beam antennaSuitable for quad band
Supplied with cable and mounting bracket ready for connection
For indoor and outdoor use
Micro SC
Program performs connection monitoring functionOPC server function for GPRS communication
Connection management to 8, 64 or 256 remote GPRS stations
German and English user interfaces
Documentation on CD in German, English and Chinese
Single licence for 1 installation
Modem: | MD720-3 |
Transfer rate | |
| RS-232: | 300bit/s up to 57,600bit/s |
| GSM data calls: | CSD 9,600bit/s |
| GPRS: | up to 54kBit |
Interfaces | |
| RS-232: | 9-pin SUB-D sockets |
| GSM/GPRS: | SMA antenna jack (50Ohm) |
General data | |
| Frequency ranges: | 850, 900, 1800, 1900 MHz |
| Transmitting power: | up to 2W |
| Power supply: | 12 to 30V DC |
| Power consumption: | Max. 430mA |
| Power consumption: | Max. 6.2W |
| Electrical connection: | Screw terminals |
| Mounting: | DIN rail |
| Housing material: | Plastic |
| Protection class: | IP40 |
| Dimensions (HxWxD): | 99x22.5x114mm |
| Weight: | 150g |
| Ambient temperature: | -20°C to +60°C |
Antenna: | ANT 794-4MR |
| Mobile radio networks: | GMS / GPRS |
| Frequencies: | 850, 900, 1800, 1900, 2200MHz |
| Characteristics: | Omni-directional |
| Antenna gain: | 0dB |
| SWR: | <2.0 |
| Max. Capacity: | 20W |
| Polarity: | Linear vertical |
| Connector/cable: | SMA / 5m length |
| Mounting: | Via bracket provided |
| External material: | Hard, PVC UV-resistant |
| Protection class: | IP65 |
| Dimensions (ØxH): | 25x193mm |
| Weight: | 380g |
| Ambient temperature: | -40°C to +70°C |
| Cross-reference to manufacturers part number | |
| Stock no. | Manuf. part no. |
623-2203 | 6NH97203AA00 |
623-2219 | 6NH98601AA00 |
623-2174 | 6NH99100AA100AA3 |
623-2180 | 6NH99100AA100AA6 |
623-2196 | 6NH99100AA100AA8 |
Approvals
CE
