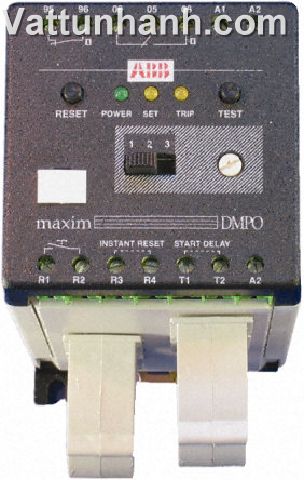

Relay, motor protection, electronic, MTE, 90-270Vac
Mã sản phẩm: RSDMPO23050000
Danh mục:Bảo vệ quá tải contactor
Hãng sản xuất:
Contact Current Rating=32 A|Control Voltage=240 V|Depth=116mm|FLC Motor Rating=0.2 → 32 A|Length=84mm|Maximum Operating Temperature=+60°C|Minimum Operating Temperature=-10°C|Mounting Style=DIN Rail, Surface|Reset Method=Automatic, Manual, Remote|Supply Voltage=220 V ac|Terminal Type=Screw|Width=66mm
Hết hàng
Giá: Liên hệ
Electronic Overload Relay with Integral CTs
Protection of 3-phase loads e.g. cage induction motors.They monitor current flowing in 2 of the 3 lines and in the event of an overload condition the output relay will de-energise after a time delay inversely proportional to the overcurrent. The units will tolerate a wide (> 2:1) variation in supply voltage without loss of performance
0.2 - 32A FLC in one unit
Integral current transformers
Selectable starting delay for high inertia loads
Trip and alarm contacts
Supply, warning and trip indication
Auto/manual/local/remote reset
Delayed or instantaneous reset
Test facility
Product can be used for loads above 32A with use of external CT’s
Retentive trip memory version available (latching)
