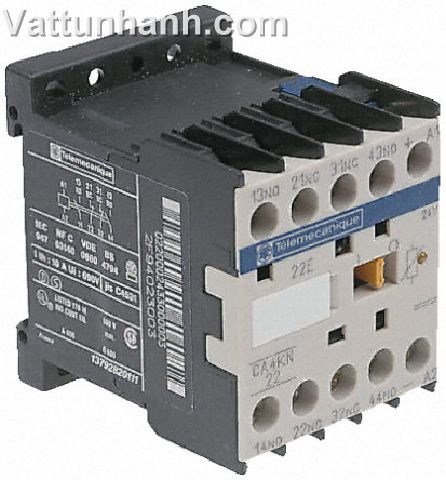

Relay, low power, k, 24Vdc, 2 N/O+2 N/C
Mã sản phẩm: CA4KN22BW3
Danh mục:Contactor
Hãng sản xuất:
Coil Voltage=24 V dc|Contact Current Rating=10 A|Contact Voltage Rating=690 V ac|Depth=2.24in|Length=2.28in|Mounting Style=DIN Rail, Panel|Normal State Configuration=2NO/2NC|Number of Contacts=4|Terminal Type=Screw Clamp|Width=1.77in
Hết hàng
Giá: Liên hệ
Low Power Consumption Control Relays, 1.8W
For use with PLC output. Has LED indicator and supression incorporated (1.8W) and wide range coil 0.7 - 1.3 x rated. voltage.
Utilisation category AC-1= 20A
Screw clamp connection
Dimensions (H x W x D) 58 x 45 x 57mm
