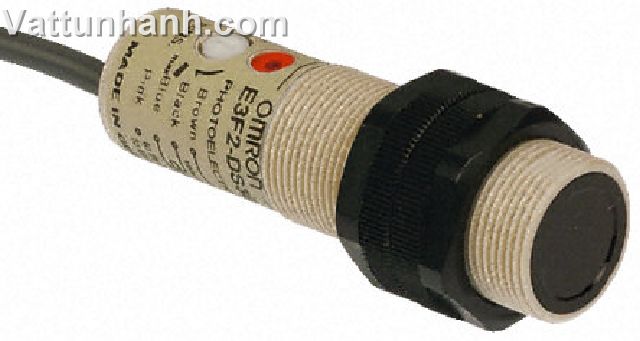

M18, PNP DIFFUSE TYPE SENSOR
Mã sản phẩm: E3F2-DS30B4 2M
Danh mục:Cảm biến quang
Hãng sản xuất:
Detection Range=0.3 m|Detection Type=Diffuse|Electrical Connection=Pre-Wired Cable|Housing Material=ABS|IP Rating=IP69K|Light Source=Infrared LED|Maximum Current=100 mA|Maximum DC Voltage=30V|Maximum Operating Temperature=+55°C|Minimum Operating Temperature=-25°C|Optical Technology=Phototransistor|Output Type=PNP|Response Time=2.5 ms|Sensor Style=Barrel
Hết hàng
Giá: Liên hệ
Omron Barrel Type_5164067_Normal Module
Threaded Cylindrical Photoelectric Sensors E3F2
A range of cyclindrical threaded sensors M18 DIN size.
Integral amplifiers for use as optical proximity detectors
Short circuit and reverse polarity protection
2.5ms response time
| Supply voltage | 10 to 30Vdc |
| Current consumption | 25mA max |
| Sensing distance | DS10: 0.1m |
| ·· | DS30: 0.3m |
| Type of detection | Diffuse reflection |
| Control output | OC transistor, 100mA max |
| Residual voltage | 2V max at 100mA |
| Operating temperature | -25 to 55 °C |
| Protection | IP66 |
| Light source | IR LED |
| Connection | 2m pre cabled |
