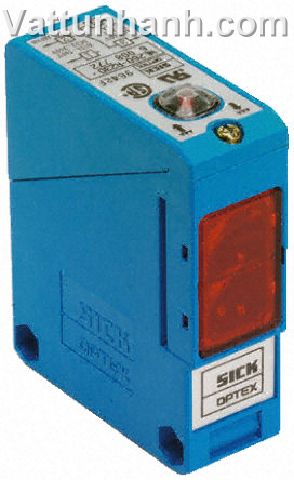

Switch, sensor, photoelectric, retro ac/dc, WL260-R270
Mã sản phẩm: WL260-R270
Danh mục:Cảm biến quang
Hãng sản xuất:
Detection Range=0.01 → 15 m|Detection Type=Retroreflective|Electrical Connection=Cable|Housing Material=ABS|IP Rating=IP67|Light Source=LED|Maximum AC Voltage=240V|Maximum Current=3 A|Maximum DC Voltage=30V|Maximum Operating Temperature=+55°C|Minimum Operating Temperature=-25°C|Output Type=Relay|Response Time=<=20 ms|Sensor Style=Block
Hết hàng
Giá: Liên hệ
W260, Versatile
Glass Reinforced Plastic housing rated to IP67 with status indicator
Relay outputs (ac./dc units), with ON and OFF delay or no delay
Light or dark selectable output (diffuse scan versions)
Adjustable sensing range
Supply reverse polarity protected and interference pulse suppressed
Side or bottom cable entry
Operating Temperature Range -25 to +55°C
Status LEDs
Mounting bracket included
Overload, reverse polarity, and short circuit protected
Dimensions 83x25x63mm
Response time 500μs
| Cross reference of SICK reflector part no. to RS stock no for RS 358-7926 | |||
| SICK no. | Scanning Range | RS stock no. | Dimensions (mm) |
| PL80A | 0.01 – 15m | 265-2776 | 84´84 |
| P250A Supplied | 0.01 – 11m | 265-2754 | 47´47 |
Note
Cable gland supplied
