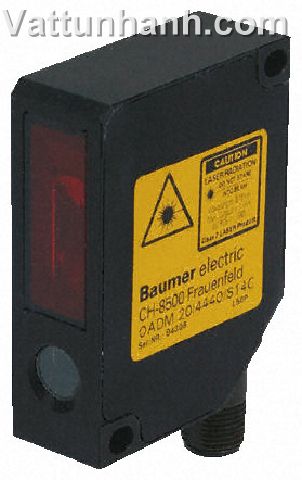

Sensor, laser, distance, measurement, 30-50mm, 4-20mA, Analogue O/P, IP67
Mã sản phẩm: OADM 20I4440/S14C
Danh mục:Cảm biến quang
Hãng sản xuất:
Detection Range=30 → 50 mm|Detection Type=Distance|Electrical Connection=5-Pin M12 Connector|Housing Material=Die Cast Zinc|IP Rating=IP67|Light Source=Laser Diode|Maximum Current=100 mA|Maximum DC Voltage=28V|Maximum Operating Temperature=+50°C|Minimum Operating Temperature=0°C|Optical Technology=Photoelectric Array, Phototransistor|Output Type=PNP|Response Time=<10 ms|Sensor Style=Block
Hết hàng
Giá: Liên hệ
Distance Measuring
Linear photodiode array
Designed for applications requiring continuous and very precise distance information
Resolution (white paper): 0.01mm (50mm range); 0.06mm (130mm range)
Linearity error (white paper) 0.03mm (50mm range) or 0.2mm (130mm range)
Soiling indicator and alarm output
4-20mA analogue and PNP alarm outputs
Output rise time <10ms
675mm wavelength
IP67
M12 5pin connector
