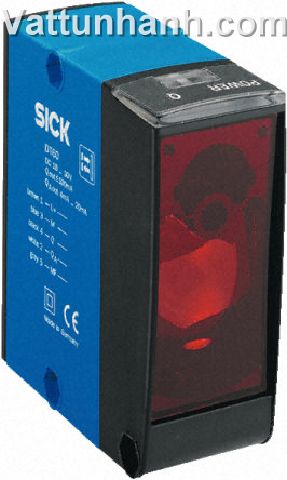

Sensor, photoelectric, M12 5 pin, Sn 200-5300mm, laser, long range, PNP 4-20mA, IP67

DT60 Long Range Distance Sensor

Using time-of-flight technology, the DT60 laser distance sensor enables accurate measurement of distances up to 5.3m. Using visible class 2 laser light, this sensor is easy to align to the target which can have any colour and be matt or shinny. Using a simple push to teach process, the 4-20mA analogue values produced by the DT60 can be adjusted to utilise the full range of the A-D converter in the PLC or control unit. The unit also produces a PNP switched output at a user defined position.

High measurement accuracy <10mm
4-20mA output and 1 PNP switched output
Compact, cost effective non-contact measurement
Reliable operation on all materials
Red laser light , (class 2, eye safe and high visibility)
Easy to use
Robust plastic housing

Note

Distance measurement of up to 5.3m is freely selectable (may be selected anywhere between 0.2m and 5.3m). On a white target, max. distance reduces for darker colours e.g. 5m with 18% remission (grey), or 2.8m with 6% remission (black). Repeatability is most important when using the sensor in positioning applications. Accuracy is most important when using the sensor in measuring applications.
