Sensor, photo-electric, easy mounting, E3FZ, M18, retroreflective, 4m, DC 3-wire, NPN M12
Mã sản phẩm: E3FZ-R66H
Danh mục:Cảm biến quang
Hãng sản xuất:
Detection Range=0.1 → 4 m|Detection Type=Retroreflective|Electrical Connection=M12 Connector|Housing Material=ABS|IP Rating=IP69K|Light Source=LED|Maximum Current=100 mA|Maximum DC Voltage=30V|Maximum Operating Temperature=+55°C|Minimum Operating Temperature=-25°C|Optical Technology=Phototransistor|Output Type=NPN|Response Time=1 ms|Sensor Style=Barrel
Hết hàng
Giá: Liên hệ
E3FZ Easy Mounting M18 Photoelectric Sensor

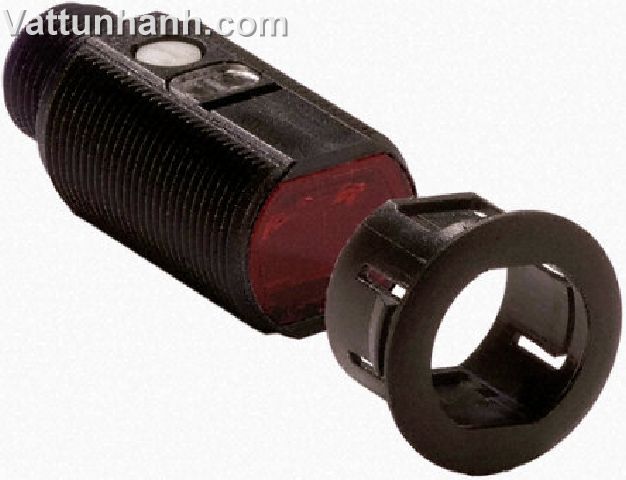

Omron’s E3FZ photoelectric sensors with it’s SecureClick mounting system, are up to 10 times faster to install than conventional sensors. There is now no need to waste time mounting brackets, tightening screws and carefully aligning sensors. The new SecureClick mounting systems fits to a 20mm hole cut out and the sensor can simply be snap fitted into place.
Secure-click snap mounting for fast installation
High power LED for enhanced sensing distance
Short housing with less than 40mm length
Minimal optical axis deviation for easy alignment
Operating temperature: -25 → 55°C
