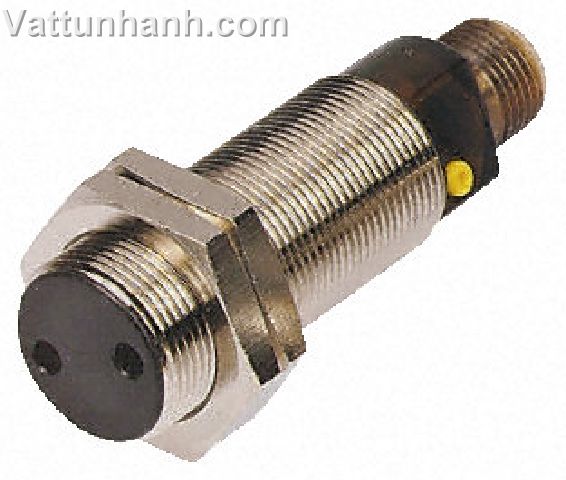

Switch, sensor, proximity, optical, M18, self teach, diffuse, scan, PNP, connector
Mã sản phẩm: FZAM 18P6460/S14
Danh mục:Cảm biến quang
Hãng sản xuất:
Detection Range=60 → 430 mm|Detection Type=Diffuse|Electrical Connection=4-Pin M12 Connector|Housing Material=Brass Nickel Plated PC|IP Rating=IP67|Light Source=Infrared Diode|Maximum Current=200 mA|Maximum DC Voltage=30V|Maximum Operating Temperature=+55°C|Minimum Operating Temperature=-25°C|Optical Technology=Phototransistor|Output Type=PNP|Response Time=<1 ms|Sensor Style=Barrel
Hết hàng
Giá: Liên hệ
M18 Threaded, NP Brass
Soiled lens indication
Set-up by teach-in or manual potentiometer
Supply Voltage 10 to 30Vdc
Temperature range -25 to +55°C
PNP output
