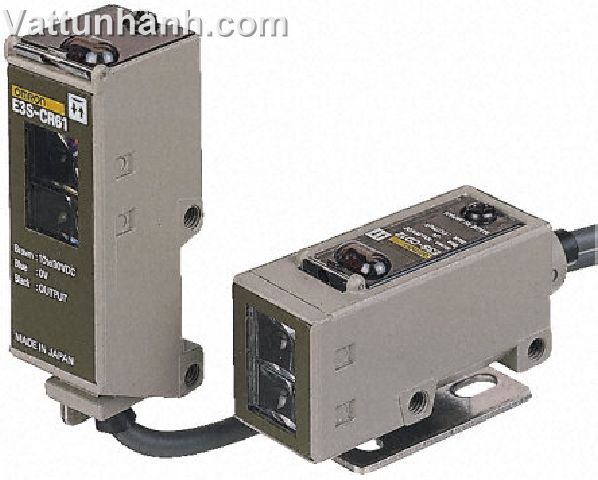

Switch, sensor, photoelectric, diffuse beam, DC, NPN/PNP L/O D/O, selectable, horizontal
Mã sản phẩm: E3SCD12
Danh mục:Cảm biến quang
Hãng sản xuất:
Detection Range=2 m|Detection Type=Diffuse|Electrical Connection=Pre-Wired Cable|Housing Material=Die Cast Zinc|IP Rating=IP67|Light Source=Infrared LED|Maximum Current=100 mA|Maximum DC Voltage=30V|Maximum Operating Temperature=+55°C|Minimum Operating Temperature=-25°C|Optical Technology=Phototransistor|Output Type=PNP|Response Time=1 ms|Sensor Style=Block
Hết hàng
Giá: Liên hệ
Metal Housing E3S-C
Exceeds sensing distance of earlier Omron sensors within this size category. Will withstand the harsh environments found in various manufacturing or process applications (e.g. oil vapour on automobile assembly lines, detergents used in food industry wash down). High immunity to dust/dirt build up.
Horizontal or vertical styles, pre-wired with 2m cable
Rugged metal housing, IP67 sealed
Sensitivity adjustment potentiometer
Output PNP/NPN and light-ON/dark-ON selectable
Response time 2ms max.
Short circuit, reverse polarity protection.
LED indication of operation and stability
Operating temperature range -25 - +55°C
Mounting brackets with fasteners included
