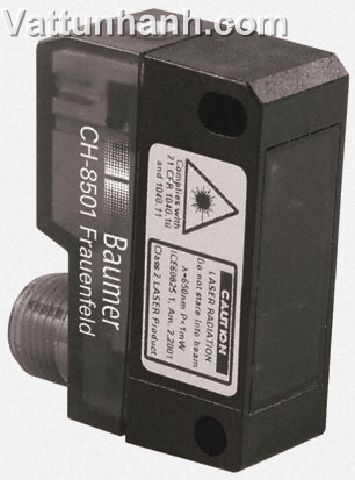

laser, detector, intensity difference, 20-350mm, PNP, M12
Mã sản phẩm: OZDK 14P1901/S14
Danh mục:Cảm biến quang
Hãng sản xuất:
Detection Range=20 → 300 mm|Detection Type=Diffuse|Electrical Connection=4-Pin M12 Connector|Housing Material=ASA, MABS|IP Rating=IP67|Light Source=Laser Diode|Maximum Current=100 mA|Maximum DC Voltage=30V|Maximum Operating Temperature=+50°C|Minimum Operating Temperature=-10°C|Optical Technology=Laser, Phototransistor|Output Type=PNP|Response Time=<0.15 ms|Sensor Style=Block
Hết hàng
Giá: Liên hệ
Series 14 Laser Diffuse Sensors
Fine laser beam for the precise detection of object edges and small objects
Long range sensing
Reverse polarity
Light/dark operate
Repeat accuracy <0.2mm
Distance to laser focus 115mm
Wave length 650nm
Current consumption maximum 35mA, typically 25mA
Mechanical 9 turn sensing distance adjustment
Class 2 laser
Operating temperature -10 → +50 °C
Dimensions 43mm (H) x 14.8mm (W) x 31mm (D)
Caution
Laser radiation is harmful to the human eye and under no circumstances should the laser beam be viewed directly or via optical instruments.
