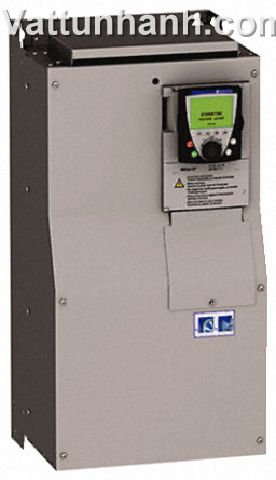

Drive,inverter,motor,415Vac,three phase,7.5KW,chassis,ATV
Mã sản phẩm: ATV61HU75N4
Danh mục:Biến tần Schneider, ABB, Omron,..
Hãng sản xuất:
Ambient Temperature=-10 → +50°C|Control Panel=Yes|Current Rating=27 A|Field Bus Communication Type=CANOpen, ModBus|For Use With=Altivar 61 Series|IP Rating=IP20, IP21, IP41, IP54|Output Frequency=0.1 → 1000Hz|Overall Depth=187mm|Overall Length=295mm|Overall Width=175mm|Phase=Three Phase|Power Rating=7.5 kW|Supply Voltage=380 → 480 Vac
Hết hàng
Giá: Liên hệ
ATV 61 variable speed drive controllers - IP 21
Frequency controllers for three-phase 0.75 to 7.5kW synchronous and induction motors.
Class of protection IP21 for bare controllers and IP41 on the upper part.
Enables drive control of three-phase induction cage motors with three-phase power supply.
Output control frequency: 0.5 to 1600Hz.
16 pre-selected speeds, more than 150 functions.
Applications for fluid control such as ventilation, air conditioning, pumping.
