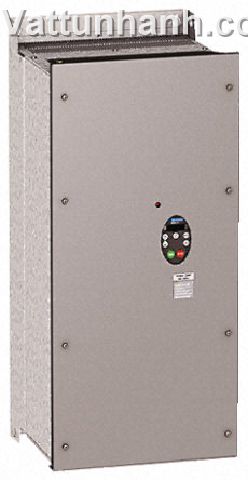

Drive,inverter,motor,415Vac,three phase,1.5KW,chassis,ATV,IP54
Mã sản phẩm: ATV21WU15N4
Danh mục:Biến tần Schneider, ABB, Omron,..
Hãng sản xuất:
Ambient Temperature=-10 → +40°C|Control Panel=Yes|Current Rating=3.7 A|Field Bus Communication Type=ModBus|Filter Included=Yes|For Use With=Altivar 21 Series|IP Rating=IP 54|Output Frequency=0.5 → 200Hz|Overall Depth=192mm|Overall Length=298mm|Overall Width=215mm|Phase=Three Phase|Power Rating=1.5 kW|Supply Voltage=380 → 480 Vac
Hết hàng
Giá: Liên hệ
ATV21 Variable Speed Drive Controllers - IP54
Frequency controllers for three-phase squirrel-cage motors 0.75 to 5.5kW
Protection index IP54
Enables drive control of three-phase squirrel-cage motors with three-phase power supply
Output control frequency: 0.5 to 200Hz
Incorporates 3 logic inputs, 2 analogue inputs, 2 logic outputs and one configurable analogue output
Local control versions
Assembly on DIN rail using fixing kit (stock no. 104-420)
Specific applications: building, heating, ventilation, air conditioning
Integrated class A filter
